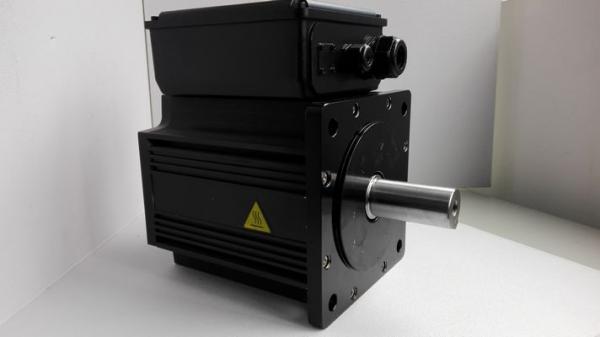

Servo220

Product ID: XHR22000

FOC(Field Oriental Control)

Permanent Magnet Brushless Servo Motor with with CPU build-in which is adapted efficiency calculation from position to amperage 14 thousand times per second to assign the appropriate rpm or Nm. In addition, energy saving of PMSMs is almost twice than squirrel cage induction motors with the adder of pulley consumers.

High Efficiency of Rated Amperage

Permanent Magnet Brushless Servo Motor with high efficiency performance especially shows on rated amperage with long ED % application. This is due to the motor temperature increase slowly and consumed energy very little than squirrel cage induction motors. High Efficiency of Rated Amperage

Ultra High Effect of Start Amperage

Ultra-high starting current efficiency compared with the traditional squirrel-cage induction motors which are up to ten times of the rated amperage at the starting. Servo motors need to be increased only ten percent more of the starting amperage, make the servo motors are more suitable for use in frequent start working conditions

Start with High Torque

Permanent Magnet Brushless Servo Motors start with full torque of output compared with squirrel cage induction motors and more suitable for high torque of working condition.

w/o Encoder

Servo Drive is designed without encoder and adapted Field Oriental Control for PMSM system design, the patent design, which high technical operations save the costs of encoder installation, adjustment, and maintenance.

WIFI Monitoring(OPTIONAL)

The built-in WiFi wireless module is optional and can be used in servo motors instantly uploaded to sever, providing remote monitoring to users for use under operating conditions. The error can be eliminated using online customers, recorded, and records can be traced back more customers to use. If there is any abnormal condition, systems can be improved or notify customers the relevant parts replacement service life early maturing.

App Modification at Any time Online Monitoring(OPTIONAL)

Customized mobile-apps can be 24 hours of Internet access to monitor and eliminate the use of remote client.

Specifications:

11KW

Features:

FOC(Field Oriental Control)

Permanent Magnet Brushless Servo Motor with with CPU build-in which is adapted efficiency calculation from position to amperage 14 thousand times per second to assign the appropriate rpm or Nm. In addition, energy saving of PMSMs is almost twice than squirrel cage induction motors with the adder of pulley consumers.
- High Efficiency of Rated Amperage
Permanent Magnet Brushless Servo Motor with high efficiency performance especially shows on rated amperage with long ED % application. This is due to the motor temperature increase slowly and consumed energy very little than squirrel cage induction motors. High Efficiency of Rated Amperage
- Ultra High Effect of Start Amperage
Ultra-high starting current efficiency compared with the traditional squirrel-cage induction motors which are up to ten times of the rated amperage at the starting. Servo motors need to be increased only ten percent more of the starting amperage, make the servo motors are more suitable for use in frequent start working conditions
- Start with High Torque
Permanent Magnet Brushless Servo Motors start with full torque of output compared with squirrel cage induction motors and more suitable for high torque of working condition.
- w/o Encoder
Servo Drive is designed without encoder and adapted Field Oriental Control for PMSM system design, the patent design, which high technical operations save the costs of encoder installation, adjustment, and maintenance.
- WIFI Monitoring(OPTIONAL)
The built-in WiFi wireless module is optional and can be used in servo motors instantly uploaded to sever, providing remote monitoring to users for use under operating conditions. The error can be eliminated using online customers, recorded, and records can be traced back more customers to use. If there is any abnormal condition, systems can be improved or notify customers the relevant parts replacement service life early maturing.
- App Modification at Any time Online Monitoring(OPTIONAL)
Customized mobile-apps can be 24 hours of Internet access to monitor and eliminate the use of remote client.

See more complete detail

1.技術規格/Technical Data
1.1 AC380V級
NPG- DRIVER SERIAL-380		600	750	1500	2200	3700	5500	7500	11000	15000	18500	22000
XHR- MOTOR SERIAL-380		600	750	1500	2200	3700	5500	7500	11000	15000	18500	22000
馬力數規格(HP) Horse Power(HP)		3/4	1	2	3	5	7.5	10	15	20	25	30
最大適用電機容量(KW)*1 Max applicable motor output		0.6	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22
額定輸出	輸出容量(KVA) Drive capacity	1.0	1.3	2.8	4	6.6	9.5	13	19	26	33	40
	額定電流（A） Rated output current	1.4	1.7	3.4	5.0	8.4	12.4	17.0	24.9	33.9	41.9	49.8
	最大短時電流（A） Max short time current	2.7	3.4	6.8	10.0	16.7	24.9	33.9	49.8	67.9	83.7	99.5
	過流跳脫電流(A) OC-tripping current	6.8	8.5	17.0	24.9	41.9	62.2	84.8	124.4	169.7	209.3	248.9
	零速電流(A) Stall current	2.7	3.4	6.8	10.0	16.7	24.9	33.9	49.8	67.9	83.7	99.5
	最大輸出電壓(V) Max output voltage	3-Phase 340V - 420V(對應輸入電源)/ relative to input voltage
	最大輸出頻率、轉速 Max output frequency、rpm	同步電機(Synchronous Motor)12000RPM;
	超載曲線 Overload curve	曲線A
電源	額定電壓、頻率 Rated Input voltage & frequency	3-Phase 340V－420V、50/60Hz
	額定輸入電流(A) Rated input current	1.6	2.0	3.9	5.8	9.7	14.5	19.7	28.9	39.5	48.7	57.9
	容許電壓變動 Allowable voltage fluctuation	'＋10∽－15%
	容許頻率變動 Allowable frequency fluctuation	±5%

Order Information:

Minimum Order: Negotiable
OEM/ODM Product, Branded Product, Buyer's Label Offered
